Single Sign-On Deployment ​

This installation guide will help you set up Single Sign-On (SSO) for Mergin Maps server. The Mergin Maps server is integrated with the most commonly used SAML and OIDC identity providers via the Ory Polis service. SSO is available for Enterprise edition servers.

Configure server ​

To enable SSO in Mergin Maps, ensure that you have SSO_ENABLED environment variables set in your .prod.env file:

shell
SSO_ENABLED=True

To run the Ory Polis stack, you need to provide environment variables in the .sso.env file. In the deployment folder for the enterprise edition, you can find the .sso.env.template file with all the required variables and their default values. Use the provided script to automatically pre-generate the .sso.env file with all the necessary variables.

shell
cd deployment/enterprise/sso
./sso-init.sh

The script will also pre-generate the SSO_SERVER_API_KEY variable for the Mergin Maps server. This variable is used to authenticate the Mergin Maps server with Ory Polis. If you created the .sso.env file manually, you need to set this variable to match one of the JACKSON_API_KEYS.

Pay close attention to these environment variables and change their default values before using them in production:

  • NEXTAUTH_ADMIN_CREDENTIALS - administrator credentials for Ory Polis admin portal. It is a comma separated string of pattern email:password, for example: matthew@example.com:Pass123,james@example.com:Pass123
  • DB_URL - the PostgreSQL database connection URL (change this if you use a different database location for Ory Polis).
  • IDP_ENABLED - set to true to enable the IDP-initiated authorisation flow.

More details about all available Ory Polis variables here.

Production deployment security

After successful initialisation of environment variables in .sso.env, we recommend double-checking the values or generating your own secrets and certificates.

Start the SSO stack ​

To run the SSO stack, you need to have a running Mergin Maps server - see previous section about deployment.

Mount the deployment/enterprise/sso/sso-nginx.conf file to the merginmaps-proxy container in the docker-compose.yml file:

yaml
volumes:
  - ./sso/sso-nginx.conf:/etc/nginx/templates/sso.conf.template

Then restart or reload the configuration in the merginmaps-proxy container and start the SSO stack:

shell
docker compose -f docker-compose.sso.yml up -d

The admin panel for Ory Polis will be available at http://localhost:8081 (the value in SSO_SERVER_URL). You can sign in to the admin portal with the credentials you set in the variable NEXTAUTH_ADMIN_CREDENTIALS.

Domain for SSO Service

We recommend running the Ory Polis server on a separate domain or subdomain to make it accessible to your users. For your production deployment, use HTTPS to serve the SSO service. See the /MerginMaps/server/blob/master/deployment/enterprise/ssl-sso-proxy.conf file in the deployment folder. You also need to set the variable SSO_SERVER_URL to the publicly available URL of the Ory Polis service.

If you want to configure the Ory Polis service to run on its own domain in production (e.g., sso.example.com), you need to add this domain to the following variables:

  • EXTERNAL_URL=https://sso.example.com
  • NEXTAUTH_URL=https://sso.example.com
  • SSO_SERVER_URL=https://sso.example.com

Mergin Maps and Ory Polis communication

If your Mergin Maps server is running without a connection to the publicly available Ory Polis SSO_SERVER_URL, you can set internal IP or domain names (e.g. http://sso:5225) in the following variables to ensure communication: SSO_SERVER_INTERNAL_URL=http://sso:5225 and SSO_SERVER_API_URL=http://sso:5225.

Configure SSO connection ​

You can now set up your first SSO (SAML or OIDC) connection in the Ory Polis admin panel.

Follow the steps below to create a new connection:

  • Go to Mergin Maps admin panel and log in.
  • In the left menu click SSO Administration.
  • Log in to the Ory Polis admin panel using credentials from the NEXTAUTH_ADMIN_CREDENTIALS variable.
  • Navigate to the Enterprise SSO tab and click New Connection.
  • Choose SAML or OIDC as the connection type.
  • Fill in the connection name and description (any value).
  • Provide your domain name in the Tenant field - this is the domain for your users emails (e.g. you users emails will be user@your.company.com, then use your.company.com in the Tenant field).
  • Enter the value mergin-maps-product in the Product field.
  • Specify Allowed redirect URLs with the domain name of your Mergin Maps server (e.g. https://merginmaps.example.com) and the domain names used by Mergin Maps clients (http://localhost:10042, http://127.0.0.1:10042, http://[::1]:10042 and https://hello.merginmaps.com/mobile/sso-redirect).
  • Provide Default redirect URL with the domain name of your Mergin Maps server.

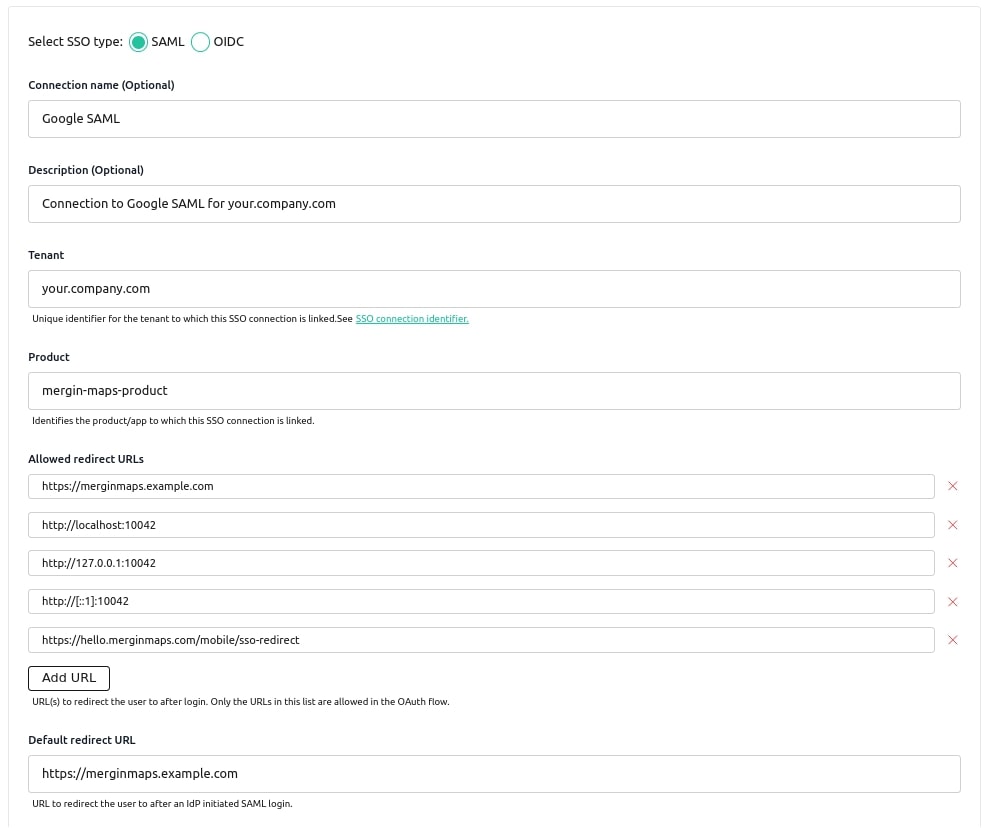

Your connection form will look like this for your users with your.company.com domain and Mergin Maps server running on https://merginmaps.example.com:

SSO connection setup

For the rest of the connection configuration parameters, refer to the Ory Polis documentation for your SAML or OIDC provider guide and follow the steps to configure your connection.

Once you have created the connection, go to your Mergin Maps dashboard and click Continue with SSO.
